Automatic
Die-cutting&Creasing Machine
|
|
|
|
| Big Turning Pneumatic Clutch: The big turning pneumatic clutch responds the speed quickly, the dint is big, and usually need not maintenant, making started, nasty stoped, ordered to move, act accurately. |
|
| Align Paper Device:Horizontal and lengthways can automatic align paper, accept the tidy and easy to row in paper discard. |
|
| Automatic Feeding Paper:It is special design of the bottom feeding device making tile paper transported fast and accurately without any error, defend the paper design and avoid rowing the paper surface. |
|
|
|
|
| Crankshaft ： The main driving system adopts worm wheel and worm gear pair and special crank shaft linkage mechanism connected by bearing shell which can reduce locomotive gap, avoid the crush of worm and worm gear and ensure the running speed. Pressure of die-cutting is high and able to be kept in high spot. The worm gear adopts the casting tin bronze to ensure long working hours and low abrasion. |
|
| Electrical Control Part: Computer control is adopted which can keep paper's feeding, transfering, die cutting and delivery in an automatic control and real-time detection. Man-machine interface indicating system will show machine's working state, trouble's position and its solution. There are various safty guarding devices that when accident occurs, it will give an alarm by sound and light and shut-down automatically to protect the safety of man and the machine. |
|
| Die-cutting Part ： The active-rotating system is with strong pressure and long working hours after special design and optimized treatment. The central-position system and plate turning structure provide great convenience to operate. Borad nail is adopted for registration and the down steel plate adopts air-switch, which make it easy to install and remove. |
|

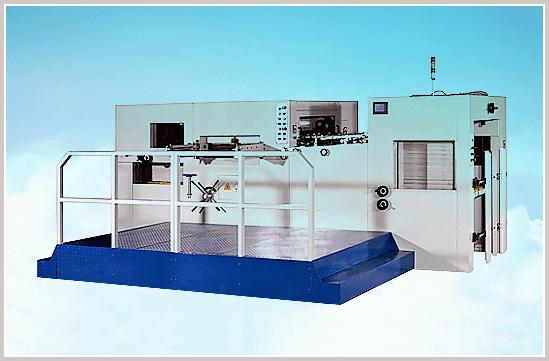

It is a special equipment applying to die-cutting of advanced colorful boxes and cartons. The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has a lot of sensors and safety-ensuring devices to guarantee the safety of operator and the environment. Frontal and back pressure can be adjusted separately. It is convenient to stop the machine by handy. It can also realize die-cutting without clipper margin.
|
| Technological Parameters： |
Die-cutting Style |
Even to flatten (bottom moving, top not) |
Max.Paper size |
1450×1030mm |
Min.Paper size |
700×680mm |
Max.die-cutting size |
1420×1020mm |
Max.die-cutting pressure |
300T |
Paper processed |
Carboard1-8mm |
Max speed |
4500 sheets/h |
Max.Feeding pile height |
1400mm (above the level) |
Max.delivery pile height |
1200mm |
Total power |
11KW |
Total Power |
20KW |
Weight |
16T |
Dimensions |
7380×3890×2200mm |
|
|
|
