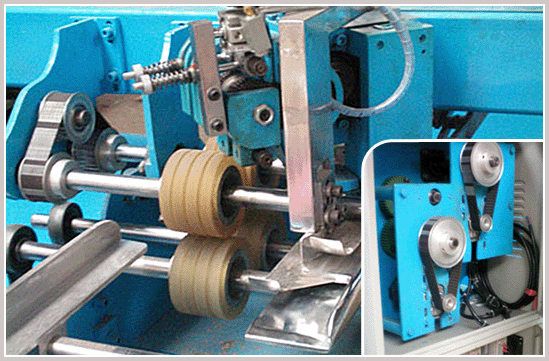

CODTC-DB Servo
model Semi-automatic stitcher


Technological Parameters：
Model
CODTC-DB
Max.Paperboard
1515*2460mm
Mechanical Speed.
400nail/min
Min.Paperboard
300*606mm
Nail distance
30-100mm
（can be adjusted）
Paper
feeding height
900mm
Nail quantity
1-99nails
Total horsepower
6HP
Nail type
Single nail,double nail,
extra-strong nail.
Machine size
L 2800mm
W 2600mm
Nail line specific
2.0mm*(0.65 to 0.75mm )
Machine weight
2000KGS
