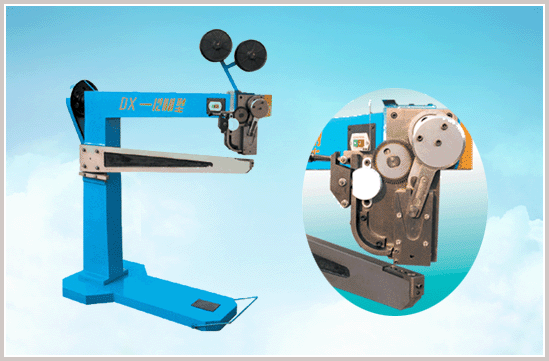

CODDX-1
Stitcher (Stapler)
|
Machine's characteristics:
The carton stapler is the special equipment for nailing the corrugated paper carton and paper box with double-feed device. It can nail double line oblique according to 45degree at the same time and nail the big and middle size paper case continuously or interruptedly.
Sizes available:600mm,900mm,1200mm,1400mm,1600mm,1800mm
|
| Technological Parameters： |
Model |
Speed |
Thickness
(layer board) |
Length
of
the arm |
Machine size |
Power
(kw) |
Machine
weight |
600 |
250/min |
3,5,7 |
600mm |
1.1*0.6*1.76 |
0.37 |
300kg |
900 |
250/min |
3,5,7 |
900mm |
1.4*0.6*1.76 |
0.37 |
400kg |
1200 |
250/min |
3,5,7 |
1200mm |
1.7*0.7*1.82 |
0.37 |
600kg |
1400 |
250/min |
3,5,7 |
1400mm |
1.9*0.7*1.82 |
0.75 |
800kg |
1800 |
250/min |
3,5,7 |
1800mm |
2.3*0.7*1.82 |
0.75 |
1000kg |
|
|
|
