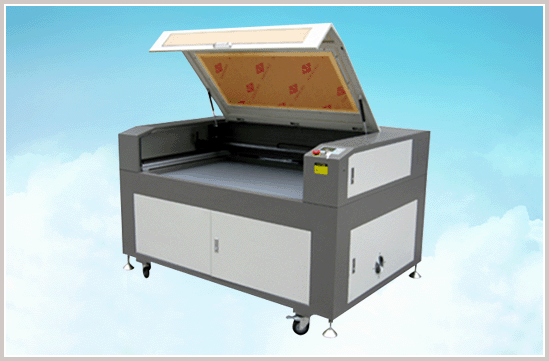

Laser cutter
and graver machine


Suitable Materials:
   The unique decelerate design make the mechanical system move stably and smoothly.
   The edge of cutting is smooth and there is no sawtooth. The software adopts continuous curve method to get faster cutting speed.
Supply with CE certificate, FDA
Specification:
01) Engraving area:1200×800mm
02) Whole machine size:1,720×1210×1070mm
03) Laser power:60w(optional 80W)
04) Cutting speed:0-24,000mm/min
05) Resetting positioning accuracy: ±0.1mm
06) Power supply:AC 110-220V±10%,50-60Hz
07) Gross power:<1,000W
08) Operating temperature:0-45℃
09) Operating humidity:8-95%
10) Minimum shaping character: English 1×1mm
11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI
12) Driving system:stepper
13) Cooling mode: water-cooling and protection system
14) Auxiliary equipments:Exhaust-fans,air-exhaust pipe
15) Controlling software:DSP control system.
16) Compatible software:CorelDraw AutoCAD Photoshop
17) Laser-type:Sealed CO2 laser tube
18) Net Weight:280KG
   Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
   Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
