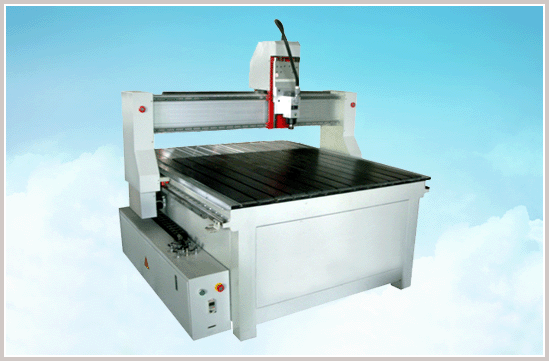

Cnc router


Suitable Materials:
     Wood, Plastic, Aluminium, Di-Bond, Engraving Board, Fomex. Engineering plastics, marble, acrylic, perspex, PVC, Composite panel, Copper, Alloys, MDF, etc.

Technological Parameters:
NO.
Discription
Parameter
1
X-Y-Z Working Area
1200×1200×120mm
2
Table Size
1340×1540mm
3
X-Y-Z Traveling
Positioning Accuracy
±0.05/300mm
4
X-Y-Z repositioning
Positioning Accuracy
±0.04mm
5
Table Size
T-slot Extrusions
6
Frame
Cast Steel
7
X, Z Structure
Hiwin Ball Screw
8
Y Structure
Ball Screw and Hiwin
Rail Shaft Linear Bearings
9
Max. Power Consumption
(Without spindle)
1.2KW
10
Max.Rapid Travel Rate
10000mm/min
11
Max.Working Speed
6000mm/min
12
Spindle Power Motor
1.5Kw self-coolant spindle
13
Spindle Speed
0-24000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC220V/50/60Hz
16
Command Language
G Code
17
Operating System
DSP System(Mach3 PC Software)
18
Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER16
21
X-Y Resolution
<0.01mm
22
Software Compatability
Type3 Software, Ucancam software
(Option:Artcam Software)
23
Running Environemt
Temperature:0℃~45℃
Relative humidity:30%~75%
24
Packing Size
1850×1850×1450mm
25
Net Weight
380KG
26
Gross Weight
500KG
All parameters above subject to change without prior notice
