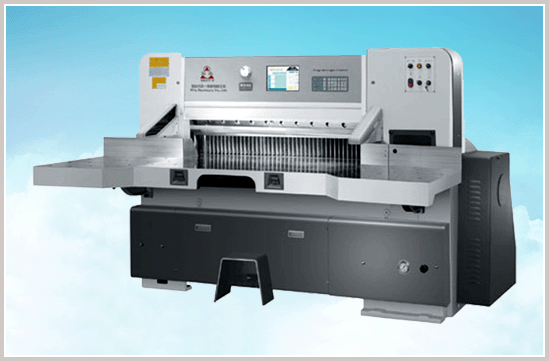

Paper cutter


Features:
   Computer control system, 5.7 inch Mono color LCD, Mitsubishi inverter technology, 0.05mm data resolution, 0.025mm position accuracy, 200 programs available, 100 sets of cutting sizes for every set, 5-15m/min back gauge speed, self-diagnosing.
10.4 inch true color LCD computer control system, over 50 sets self-diagnosing, 0.01mm data resolution, 0.01mm position accuracy, 6-20m/min back gauge speed, trouble shooting available displayed, free change of interface color, Multi-language operation.
10.4 inch computer control system has its self- diagnosing and operating mode display, 200 sets of programs, memory storage, dynamic tracking. Mitsubishi servo transmission technology, double guide gauge, ball screw shaft (T screw shaft optional), the best choice for paper converting.

Technological Parameters:

model

COD92

cutting width (cm/in)

92/36.25

cutting height(without false clamp plate)(cm/in)

13/5.13

cutting length (cm/in)

92/36.25

main motor power (kw)

3

net weight (kg/1bs)

2500/5500

width with sideway (cm/in)

212/83.50

length (cm/in)

205/80.69

height (cm/in)

156/61.4

front table length (cm/in)

69/27.19

table height (cm/in)

90/35.44

clamp pressure(min) (n)

150/330

clamp pressure(max) (n)

6000/13200

smallest cut(without false clamp) (cm/in)

2.5/1

smallest cut(with false clamp) (cm/in)

9/3.5

cutting speed (cm)

45

packing size(L×W×H) (cm) (in)

244×145×180
96.08×57.09×70.88

voltage(three-phase) (v)

380±5%
