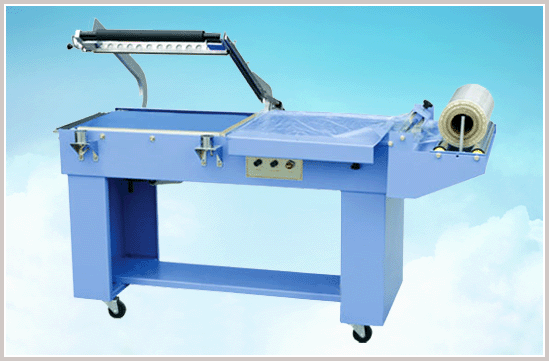

L-Bar
Sealer & Sleeve Sealer


Features:
Works with all types of shrink films, but specially tunnel for non-PVC, polyolefin films;
Temperature compensating solid state controllers;
Belt conveyor with variable speed and adjustable;
Top & side heat, Stainless-steel heater;
Quick change seal wire with tension assembly;
Roller, wire mesh optional;
High velocity turbo-tunnel;
Combination unit-system runs on one circuit;
Double Magnetic Hold-down; Sealing blade on top (L-sealer);

Technological Parameters:
Model
FQL 450A
Power supply
1Phase 110,220-240V/50-60Hz
Converyor speed
0-15m/min
Seal size
600x450mm
Product size
L580xW420mm
Converyor loading
25kgMax
Machine size
145x67x100cm
Machine weight
110kg
Shrink film
POF,PVC,PP,PE
