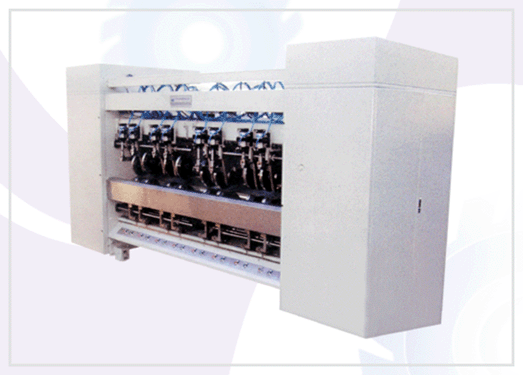

NC.Thin Blade


Design speed:200m/min
width:1400mm-2500mm
4 blades 6 scorers or 5 blades 8 scorers
Entire machine is able to electromotion axial movement 90mm left
   or right, assort low breadth excursion efficiently.
Adopt thin blade high-speed slitt er. Exact ball bearing pole and
   beeline guidway transmission.
The upper edge wheel, upper scorer wheel adopt pneumatic control
   of lift-lower,there is no need to cut off the cardboard while
   changing order.
NC. Automatic follow the production speed,to a ssure in-phase
   whith it.
Auto-grinding edge system can be realized in the process of
   production, non-stop machine grinding edge,grinding edge set are
   enacted the interval meter and the grinding time at any moment by
   material and condition of hem.
Each of blade seat and wheel seat adopts independent brake motor
   control,realize high-speed arranging edge and change orders at the
   same time while non-stop,accomplish the specification changed
   within 8 seconds.
Comuter reserve groups of orders,ouput any se t of order as
   requested of practice.
